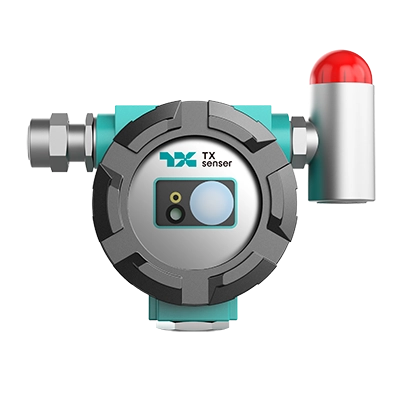

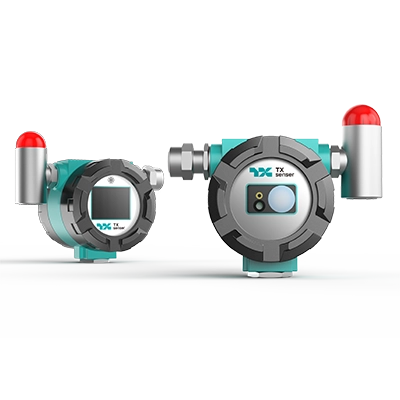

XF8 Open Path Laser Methane Detector XF8

Classification

XF8 Open Path Laser Methane Detector XF8

XF8 Open Path Laser Methane Detector XF8
XF8 Open Path Laser Methane Detector XF8 - Image 2
XF8 Open Path Laser Methane Detector XF8 - Image 3
XF8 Open Path Laser Methane Detector XF8 - Image 4
XF8 Open Path Laser Methane Detector XF8 - Image 5
XF8 Open Path Laser Methane Detector XF8 - Image 6
Sampling Method Open Path
Path Lengths 0.5-60m
Measuring Range 0-100,000 ppm·m
Accuracy  True value ±20% @Standard reflective surface
Response Time (T90) < 1S
Display Type Color LCD
Environmental Parameters -10-50℃
• Operating Temperature -40-60℃
• Storage Temperature ≤98%
• Operating Humidity 80kPa-116kPa
• Operating Pressure 12-24VDC
Power Specifications ≤3W
• Input Voltage 4-20mA(Default) or RS485 / LoRa
• Power Consumption Modbus RTU
Communication Specifications CLASS I
• Communication Interface CLASS IIIR
• Communication Protocol Aluminium Alloy
Laser Safety Classification IP65
• Detection Beam 1.85kg
• Alignment Beam
Mechanical Construction
• Shell Material
• Ingress Protection
• Weight
Send Inquiry

Application Features

Industrial Methane Dynamic Monitoring

  • Non-contact long-range gas tracking (60m open optical path)
  • Continuous perimeter scanning & leakage cloud mapping

Stable Operation in Complex Environments

  • Adaptive anti-interference technology (rain/fog/vibration

optimized)

  • Explosion-proof design for spatial deployment in pipe

galleries/equipment clusters

Subsecond Industrial Response

  • <1s leakage-triggered control system linkage
  • Pre-calibrated plug-and-play (Modbus/4-20mA direct interface)

Compact Flexible Deployment

  • Lightweight aluminum alloy housing for confined spaces
  • Rapid open-path deployment (reflector-free calibration)

Equipment Functions

Non-contact laser methane monitoring(Custom gases)

Over-Limit Alarm

Remote-control Parameter Setting

Areas of Application

Metallurgical Industry

  • Early warning for branch pipe leaks in coke oven natural gas heating

systems

  • Real-time monitoring of annealing furnace gas supply pipelines in steel

rolling mills

Petrochemical Plants

  • Leak detection at ethylene unit fuel gas pipeline interfaces
  • Perimeter protection for LNG storage tank BOG recovery systems

Glass Industry

  • Burner array monitoring on float glass production lines
  • Leakage alert at gas pressure regulation stations of glass melting furnaces

Urban Gas Supply Systems

  • Linear monitoring of pipeline joints in gas gate station filter zones
  • Leakage warning along underground natural gas pipeline corridors

Certifications

Explosion Protection

  • China Ex:

-Ex db IIC T6 Gb

-Ex td ib llC T80℃ Db
