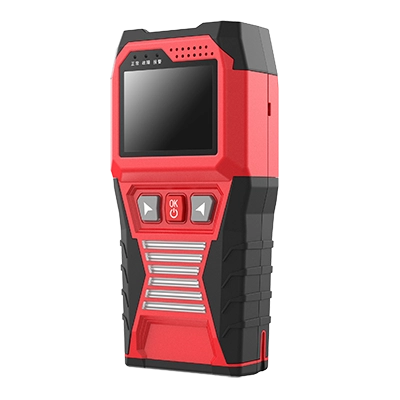

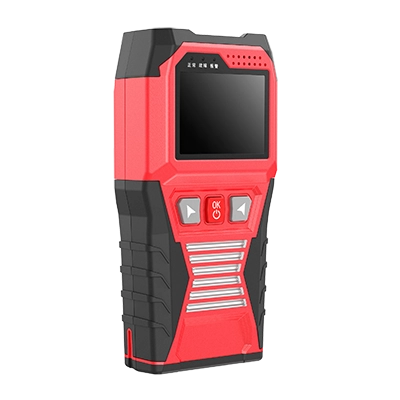

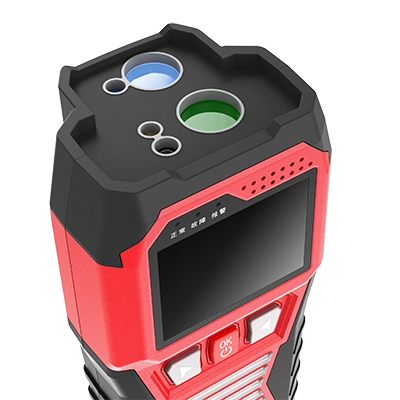

XB8 Laser Methane Remote Sensing Detector XB8

Classification

XB8 Laser Methane Remote Sensing Detector XB8

XB8 Laser Methane Remote Sensing Detector XB8
XB8 Laser Methane Remote Sensing Detector XB8 - Image 2
XB8 Laser Methane Remote Sensing Detector XB8 - Image 3
XB8 Laser Methane Remote Sensing Detector XB8 - Image 4
XB8 Laser Methane Remote Sensing Detector XB8 - Image 5
XB8 Laser Methane Remote Sensing Detector XB8 - Image 6
XB8 Laser Methane Remote Sensing Detector XB8 - Image 7
Sampling Method Open Path
Path Lengths 0.5-60m
Measuring Range 0-100,000 ppm·m
Accuracy  True value ±20% @Standard reflective surface
Response Time (T90) < 0.1S
Display Type Color LCD
Environmental Parameters -10-50℃
• Operating Temperature -40-60℃
• Storage Temperature ≤98%
• Operating Humidity 80kPa-116kPa
• Operating Pressure Normal operation > 8H
Power Specifications Full load operation > 4H
• Endurance (Continuous sound and light alarm)
• Charging Method Charging Dock
• Internal Battery Built-in Lithium Manganate Battery
Laser Safety Classification CLASS I
• Detection Beam CLASS IIIR
• Alignment Beam ABS+PC
Mechanical Construction IP65
• Shell Material 420g
• Ingress Protection
• Weight
Send Inquiry

Application Features

Remote Detection

  • Penetrates glass/flame via laser telemetry
  • Industry-leading ppm sensitivity & detection limits

Industrial Reliability

  • IP65 housing & ergonomic design for harsh O&G sites
  • 24/7 runtime with instant-charge docking

Leak Localization

  • Green laser guidance with real-time tracking
  • Explosion-proof certified & precalibrated for safety

Equipment Functions

Handheld Methane Leak Locator(Custom gases)

Real-time Leak Source Localization and Alarm

Tri-mode Alarms (Sound/Light/Vibration)

Areas of Application

Energy Infrastructure

  • Remote leak screening for refinery pipelines/LNG tanks
  • Real-time seal monitoring at wellheads

Urban Gas Systems

  • Non-invasive leak detection in buried distribution networks
  • Failure localization at gas pressure stations

Industrial Safety

  • Pressurized leak source tracing in chemical plants
  • Pre-entry hazard scanning for confined spaces

Certifications

Explosion Protection

  • China Ex:

-Ex ib IIC T4 Gb

  • ATEX:

-Ex II 2G Ex ib IIC T4 Gb

Functional Safety

  • IEC 61508:2010 SIL 2
